Product Description
Enhanced Push-pull Force
Leak-proof Structure
Durable Construction
Flexible Installation
Perfect Compatibility
Easy Assembly

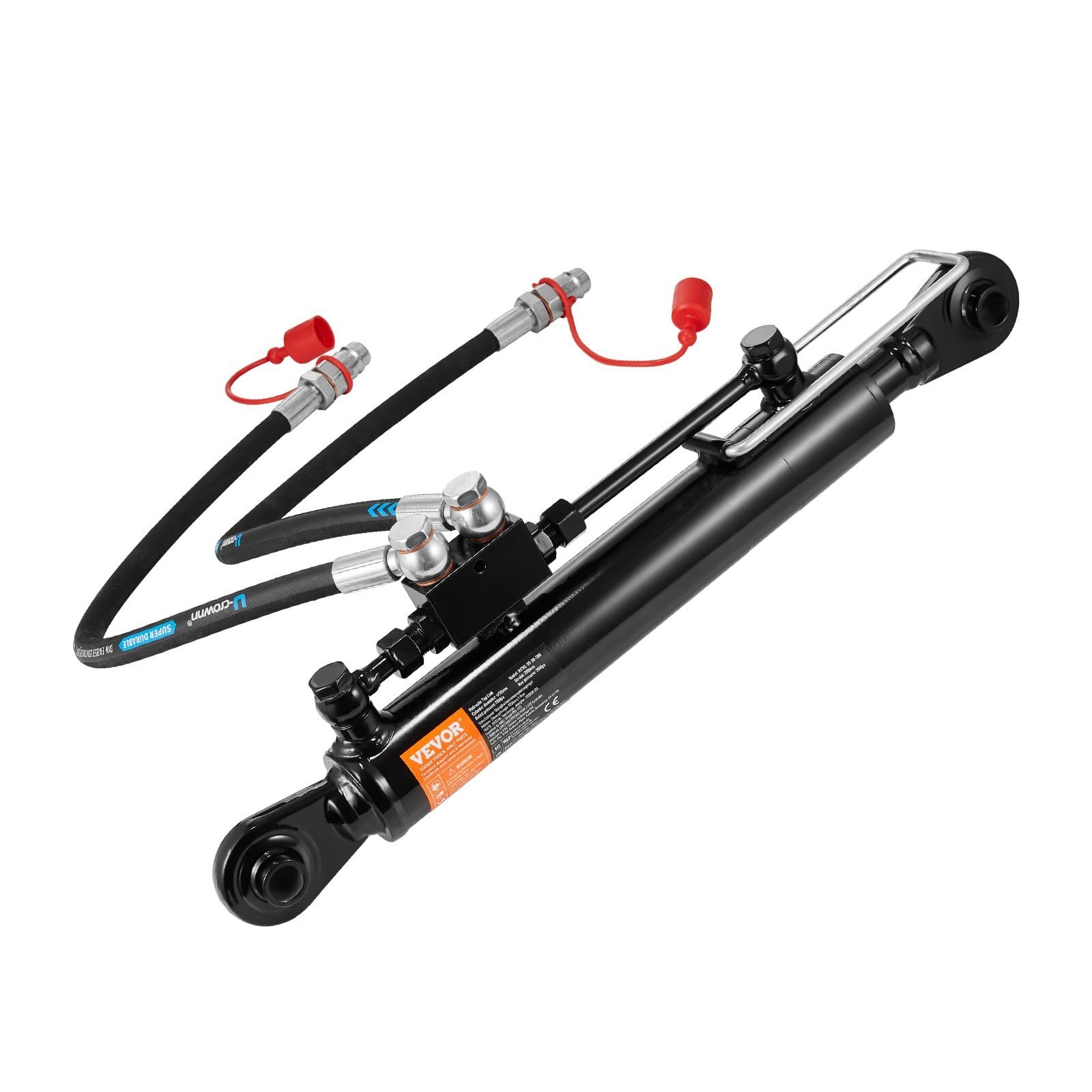

Hydraulic Hose: (I.D.&L.): 0.4×30.1 inch/∅10×765mm,Stroke: 11inch/280 mm,Piston Rod Diameter: 1.2 inch / Φ30 mm,MinimumRetracted Length: 20-7/8 inch (530 mm),Cylinder Diameter (I.D.):2.0 inch / Φ50 mm,Color and Surface Treatment: BlackPaint,Connection Hole Width: 1.7 inch / 44 mm,Product Dimensions:23.4×4.7×2.4 inch/595×120×60 mm,Compatible Equipment:ClassⅠTractors,Outer Diameter: 2-3/8 inch (Φ60 mm),Service Life:1-year Warranty,Thrust Force: 3.5 Tons,Pull Force: 2.3 Tons,CheckValve Inlet/Outlet Port: G3/8",Rotatable Piston Rod: Ball JointLinkage Structure,Item Model Number: WCVC-50-30-280,Fitting Type:G1/2,Maximum/Rated Working Pressure: 20/18 MPa (2900/2610 psi),NetWeight: 20.1 lbs/9.1 kg,Main Material: 45#,Connection HoleDiameter: 0.8 inch / Φ19.4 mm
