Product Description

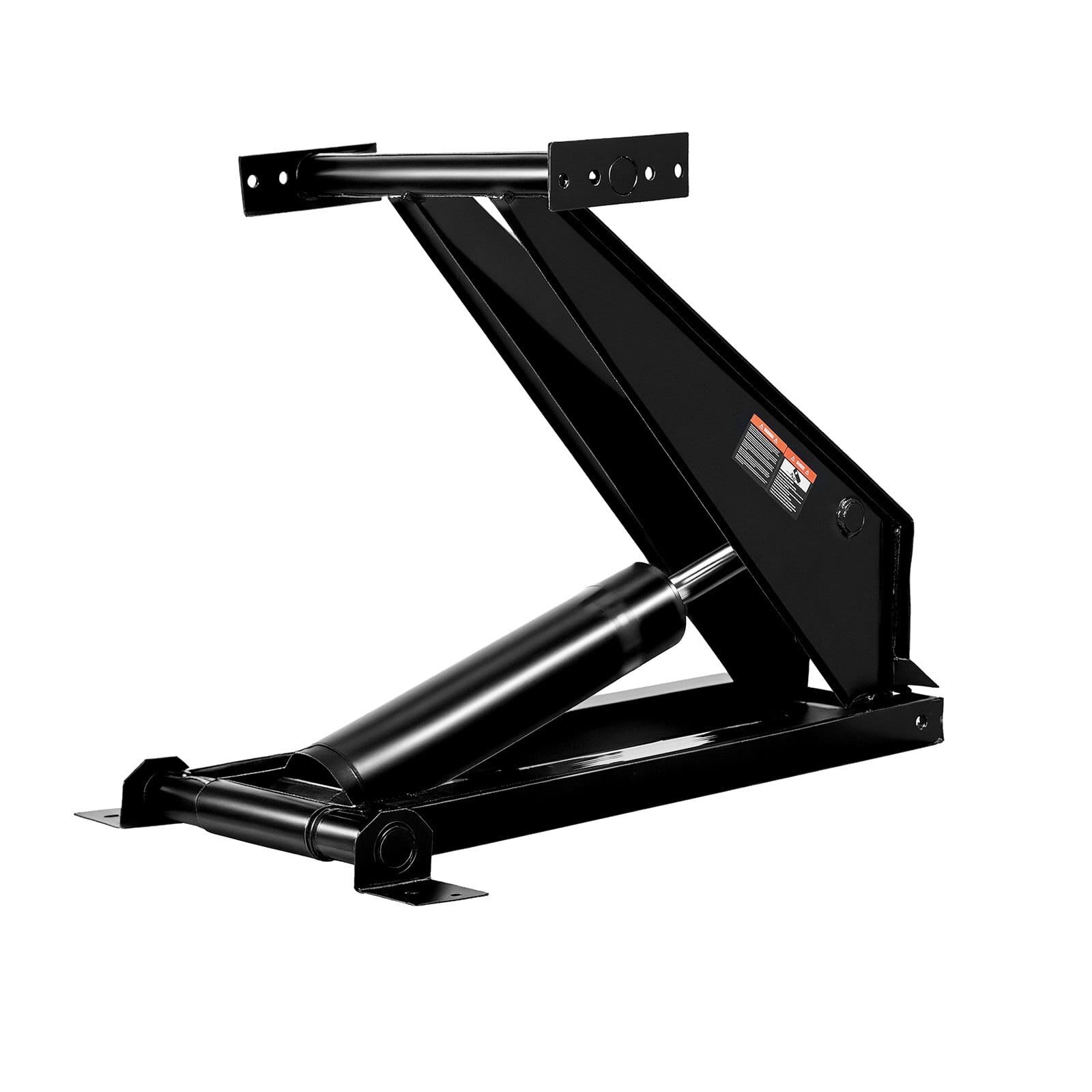

Custom for Large Dump Trailers
Double-Acting Pump
Avoid the Dangers of Unloaded Lifting
Sturdy and Durable
Versatile Applications
Easy Maintenance
Recommended Dumping Angle: ＜45°,Oil Tank Material: PPPlastic,Maximum Body Tilt Angle: 120°,Hydraulic Oil Tank Capacity:8 QT/7.6 L,Maximum Release Pressure: 3200 PSI/22 MPa,Main BodyPlate Thickness: 0.3"/8 mm,Suitable Trailer Length: 10 - 14ft,Power Output: 1.6 kW,Flow Rate: 1.45 GPM,Product Sizes: 42.9" x24.0" x 10.0"/1090 x 610 x 255 mm,Load Capacity: 8 T / 17,600lbs,External Power Voltage: DC 12V,Item Model Number: ER-006(8T),User-Provided Power Cable Capacity: ≥200 A (Single-core Cableof 100 mm²),Net Weight: 335.1 lbs / 152 kg,Main Material:Steel,Operating Hydraulic Pressure: 16 - 20 MPa
